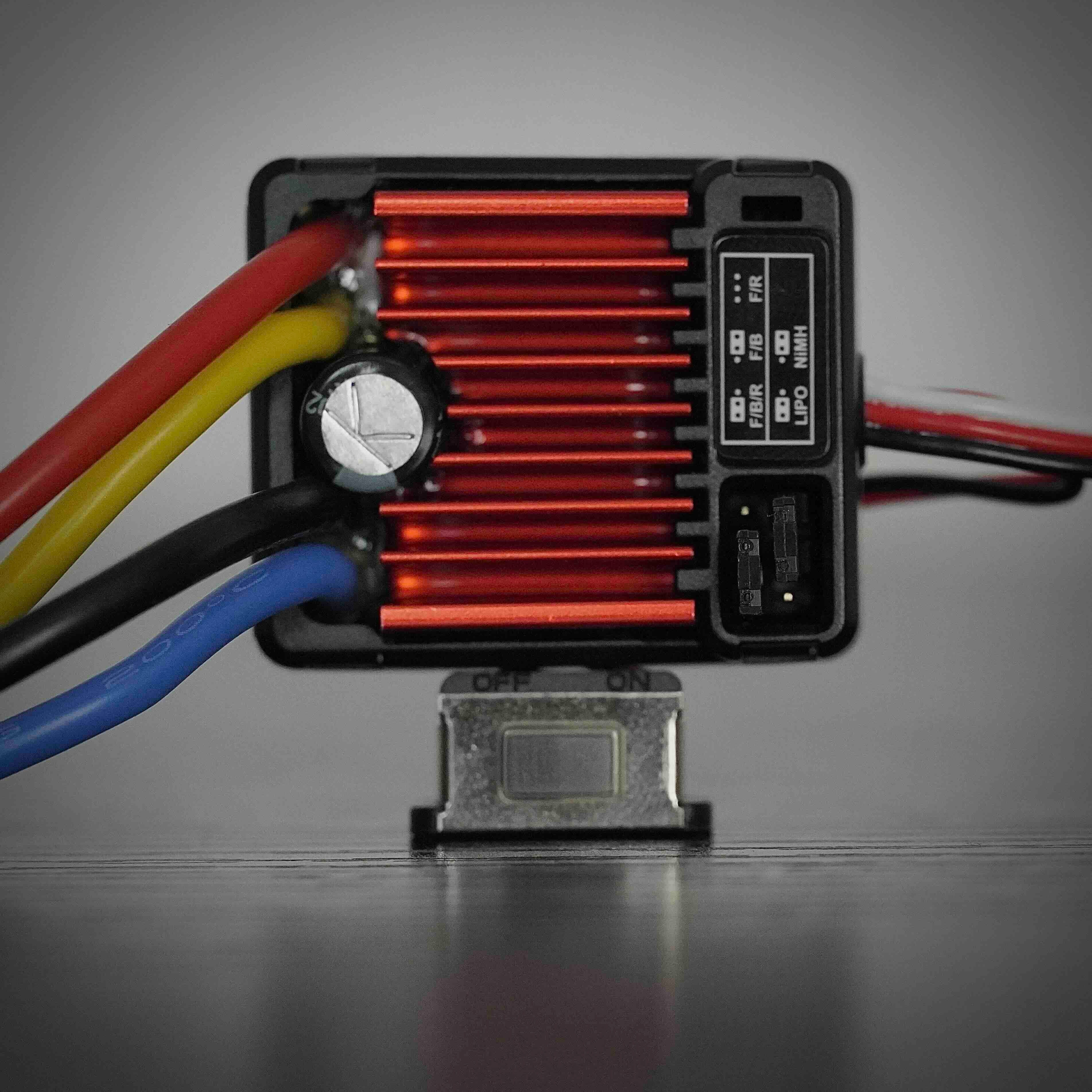

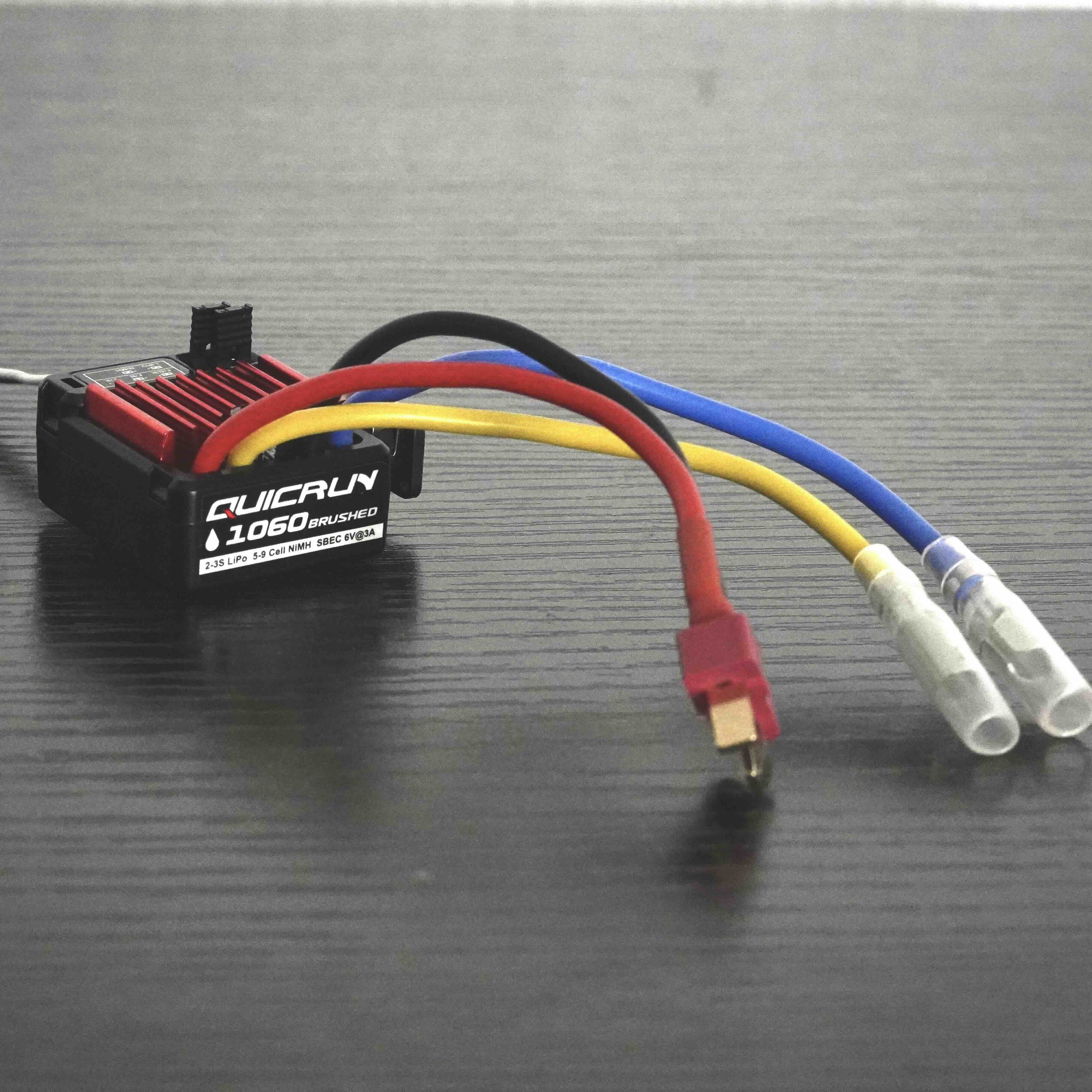

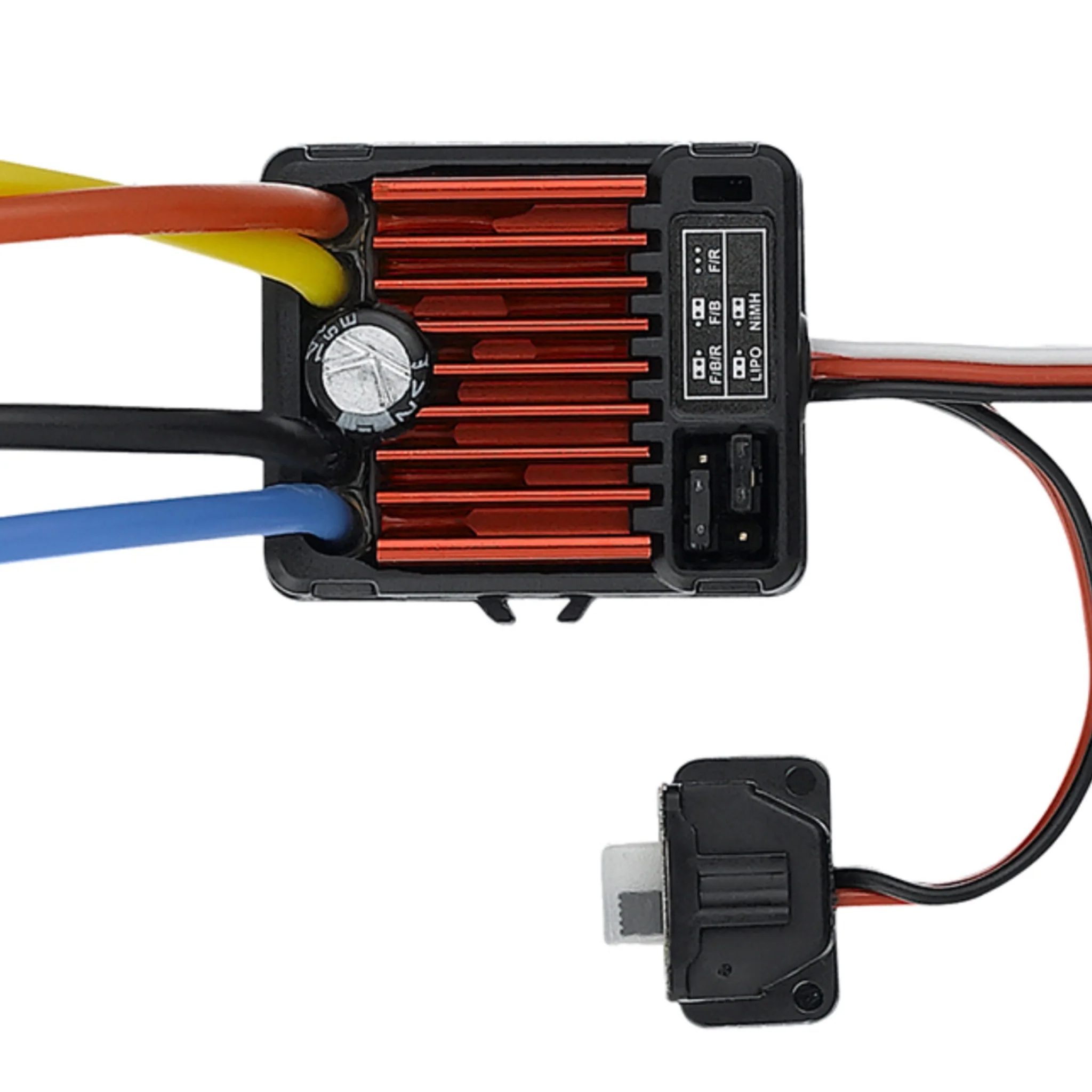

QUICRUN 1060 BRUSHED ESC (2-3S)
MSRP $30.00
QR1060 Suitable for 1:10 SPORT, BOAT, TANKER
This ESC is designed for 1/10th scale touring cars, buggies, short-course trucks, monster trucks, trucks, crawlers, and tanks.- Water-proof and dust-proof, suitable for all weather races.
- Small in size, with a built-in capacitor module.
- Fwd/Rev/Br running mode fits various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
- Great current endurance capability.
- Great built-in BEC output capacity.
- Automatic throttle range calibration, easy to use.
- ESC parameters are easy to set with jumpers.
- Multiple protections:
- Over Voltage Protection
- Low voltage cut-off protection for battery
- Over-heating protection
- Throttle signal loss protection.
- Risk-Free manufacturer's limited warranty available through Authorized Dealers in North America
|
Model / SKU
|
QUICRUN-WP-1060 BRUSHED |
|
Fwd Cont. Current /Peak Current/ Resistance
|
60A/360A/0.001Ω |
| Rev Cont. Current /Peak Current/ Resistance | 30A/180A/0.002Ω |
| Motor Type Supported | Brushed Motor |
| Car Applicable | 1:10 Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank |
|
Suitable Battery Brushed Motor Limit |
For 2S LiPo or 6 cell NiMH: 540 or 550 Size Motor: ≥12T, Or RPM<30000 @7.2V For 3S LiPo or 9 cell NiMH: 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V |
| BEC Output | 3A/6V (Switch Mode) |
| PWM Frequency | 1KHz |
| Size/ Weight | 35.5(L)*32.18(W)*18(H) / 39g |
| Running Modes | Forward/Reverse/Brake, Forward/Brake, Forward/Reverse |
| Cooling Fan | No need |
| Input Connection | T-Plug |
Available through the Authorized Dealer Network in North America
Download : User Manual of QuicRun 1060 Brushed ESC >
